SP-L3S4P 11.1V 10400mAh Max. 4A Lithium Battery Pack
Standard Battery Pack Li-ion
11.1V / 10400mAh / 115.44Wh
Specification
| Electrical Parameters | |
| Standard Capacity | 10.4Ah |
| Standard Voltage | 11.1V |
| Battery Resistance (whole pack) | ≤50mΩ |
| Max. Charge Current | 2A |
| Max. Charge Voltage | 12.6±0.05V |
| Max. Discharge Current | 4A |
| Off Discharge Voltage | 8.25V |
| Cycle Life (500 Times) | >8.32Ah |
| Charging Method | CC-CV |
| Size | 68*75*57(mm)±0.5 |
| Weight | 548g±0.5 |
| Operating Temperature | -20~45℃ |
| Storage Temperature | -20~35℃ |
| Protection Circuit | |
| Protection Circuit Board | equipped |
| Over Charge Protection | 12.75±0.025V / 0.5S-1.5S |
| Over Discharge Protection | 7.5±0.062V / 10mS—150mS |
| Exterior short circuit | Cut load / 200-500us |
| Output Connector | |
| Charge / Discharge Connector | Can be customized |
| Application | |
| Suitable for security equipment, electronics, industrial and medical devices, etc | |
Recommended Accessories
| Type | Model | |
|

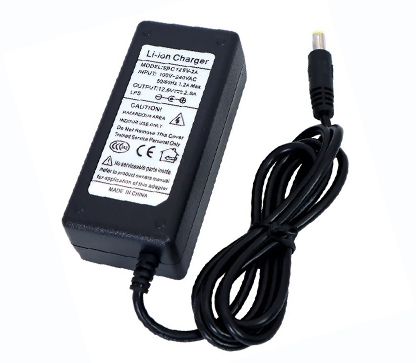

Standard battery charger for optimized charging process DC5.5#2.1 with wall socket
|
 |
SP-C3S2A
Lithium Battery Charger 12.6V / 2A |
