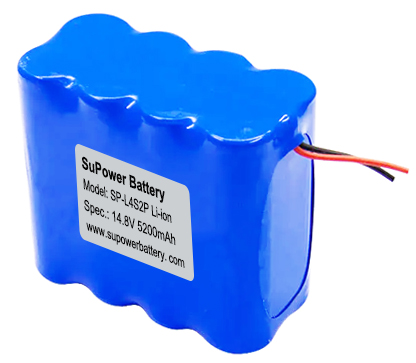

SP-L4S2P 14.8V 5200mAh Max. 3A Lithium Battery Pack
Standard Battery Pack Li-ion
14.8V / 5200mAh / 76.96Wh
Specification
| Electrical Parameters | |
| Standard Capacity | 5.2Ah |
| Standard Voltage | 14.8V |
| Operating Voltage | 11V~16.8V |
| Max. Charge Current | 2A |
| Max. Charge Voltage | 16.8±0.05V |
| Max. Discharge Current | 3A |
| Off Discharge Voltage | 11V |
| Cycle Life (500 Times) | >4.16Ah |
| Charging Method | CC-CV |
| Size | 68*78*38(mm)±0.5 |
| Weight | 368g±0.5 |
| Operating Temperature | -20~45℃ |
| Storage Temperature | -20~35℃ |
| Protection Circuit | |
| Protection Circuit Board | equipped |
| Over Charge Protection | 17±0.025V / 0.5S-1.5S |
| Over Discharge Protection | 10.0±0.062V / 10mS—150mS |
| Exterior short circuit | Cut load / 200-500us |
| Output Connector | |
| Charge / Discharge Connector | Can be customized |
| Application | |
| Suitable for bike light, torch, LED lighting, industrial, electronics and medical devices, etc | |
Recommended Accessories
| Type | Model | |
|
Standard battery charger for optimized charging process DC5.5#2.1 with wall socket
|
 |
SP-C4S1A
Lithium Battery Charger 16.8V / 1A |
